420STU Spare Replacement Parts

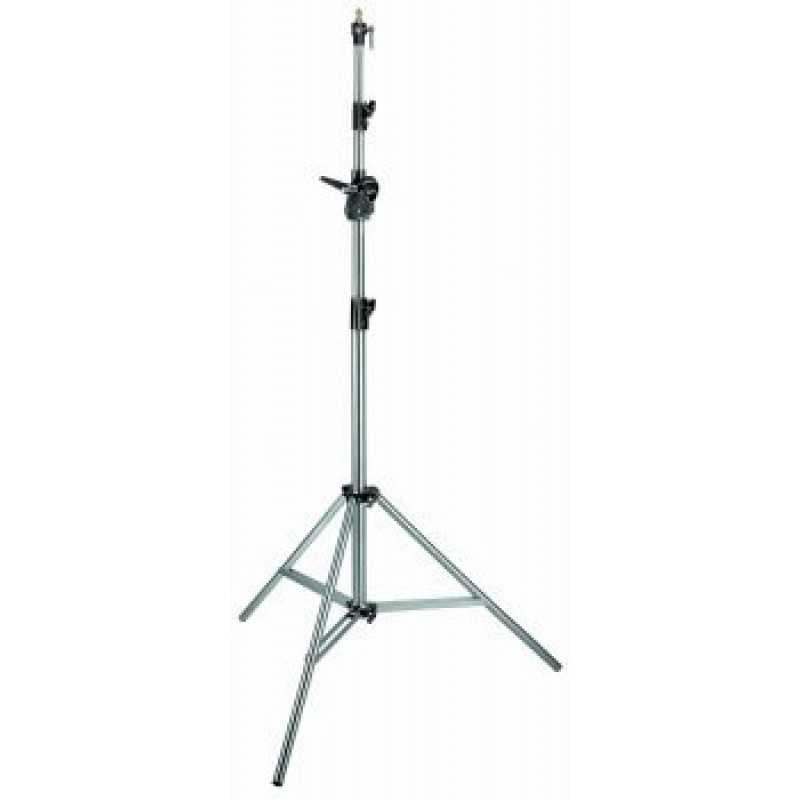

Image for illustrative purposes only, variations may differ.

Finding and selecting your part is as easy as 1-2-3

There are no variations of this model,
please skip to step 2 below.

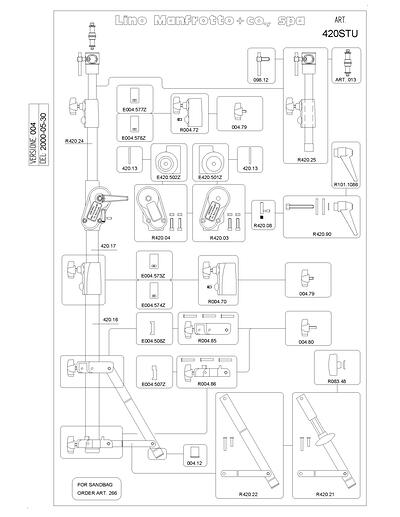

Identify the part using the diagram
Hover or tap the image to zoom in.

Add the part to your basket.
You can narrow the list of parts shown by typing in the part number identified in step 2.

Add accessories to your basket.


1 Model Number

2 Identify The Part


Hover over or tap the image to zoom, or download the full PDF

4 Accessories

3 Add The Part To Your Basket

Available Parts. Type the part number below in order to filter this list:

$145.91 (Ex VAT) R420.21 R420,21. Leg with slider

Unavailable R420.22 R420,22. Leg

Unavailable ART. 266

$30.35 (Ex VAT) 004.12 R004,12. Feet For Leg Set Of 3

$16.30 (Ex VAT) R083.48 R083,48. Lazy Leg Lockoff Knob with washer

$29.28 (Ex VAT) R004.86 R004,86. Bottom Spider with knob&rivets

$8.41 (Ex VAT) E004.507Z R004,07. Brake Shoe ( Set of 1 + 1 ), replaces E004,507Z

Unavailable 004.80 R004,80. Locking Screw - USED

$32.52 (Ex VAT) R004.85 R004,85. Top Spider

$8.82 (Ex VAT) E004.508Z R004,08. Brake Shoe, replaces E004,508Z

Unavailable E004.574Z

$56.91 (Ex VAT) 420.16 R420,16. Steel Tube 35x1x790

$27.32 (Ex VAT) R004.70 R004,70A. Bottom Collar

Unavailable 004.79 R004,80. Locking Screw - USED

$62.83 (Ex VAT) 420.17 R420,17. Steel Tube 30x1x895

$31.19 (Ex VAT) R420.04 R420,04. Left Lock Joint Half Shell

$39.50 (Ex VAT) R420.03 R420,03. Right Lock Joint Half Shell

$21.46 (Ex VAT) R420.08 R420,08. Safety Lock

$59.25 (Ex VAT) R420.90 R420,90. Handle Assembly For Lock Joint

$31.48 (Ex VAT) R101.1086 R101,1086. Handle. Female

$116.85 (Ex VAT) R420.25 R420,25. Top Column with collar & Bushing

$18.71 (Ex VAT) 420.13 R420,13. Washer

$17.55 (Ex VAT) E420.501Z R420,01. Half Shell

$17.55 (Ex VAT) E420.502Z R420,02. Half Shell

$87.49 (Ex VAT) R420.24 R420,24. Section

$11.88 (Ex VAT) E004.578Z R004,78. Brake Shoe for Collar ( Set Of 2 ), replaces E004,578Z

$36.22 (Ex VAT) R004.72 R1004,96. Assembly Sleeve

Unavailable E004.577Z

$44.67 (Ex VAT) 098.12 R098,12. Ass Lever. ( Pack Of 5 )

$15.00 (Ex VAT) Art. 013 013. Adaptor Spigot
